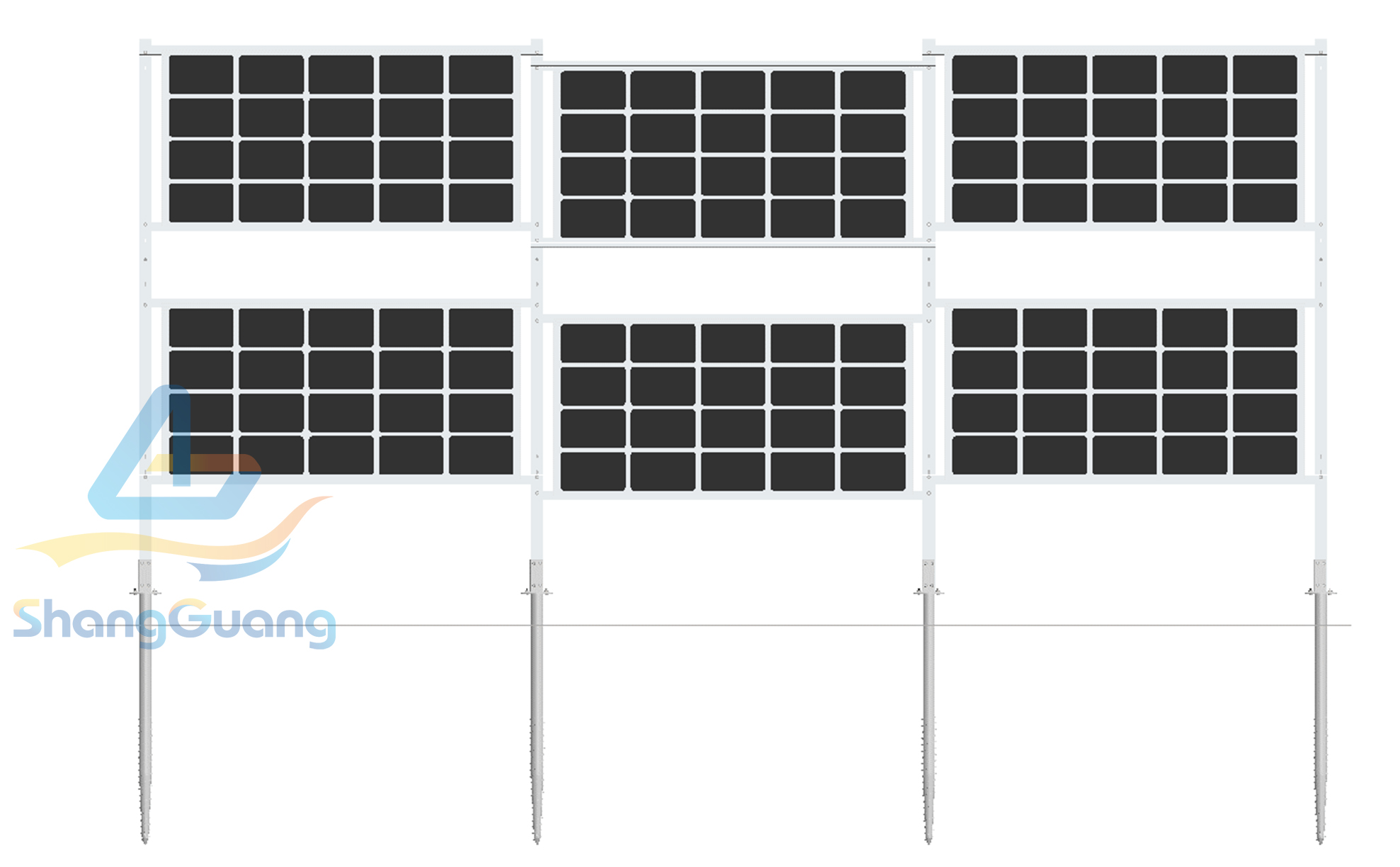

Vertical Bracket Solar Mounting System

Vertical Bracket Solar Mounting System

Why choose vertical solar power system?

1. The solar vertical frame, because it is set vertically, can save a lot of land area on site.

2. Apply to heavy snow areas. Even the snow will not snow, with strong snow resistance, 30 years of service life.

3.90 degree vertical setting, with self-purification ability, easy maintenance. There is no need for large-scale after-sales maintenance, and the maintenance cost is low.

5. The advantage of vertical installation of solar panels is to ensure the space for crops to grow. Agricultural machinery can work in the wide space below without the need for a high stand.

6. Solar power generation systems can be easily installed on farmland. Farmers can generate electricity and farm at the same time. It also contributes to the spread of renewable energy in the region.

产品详情

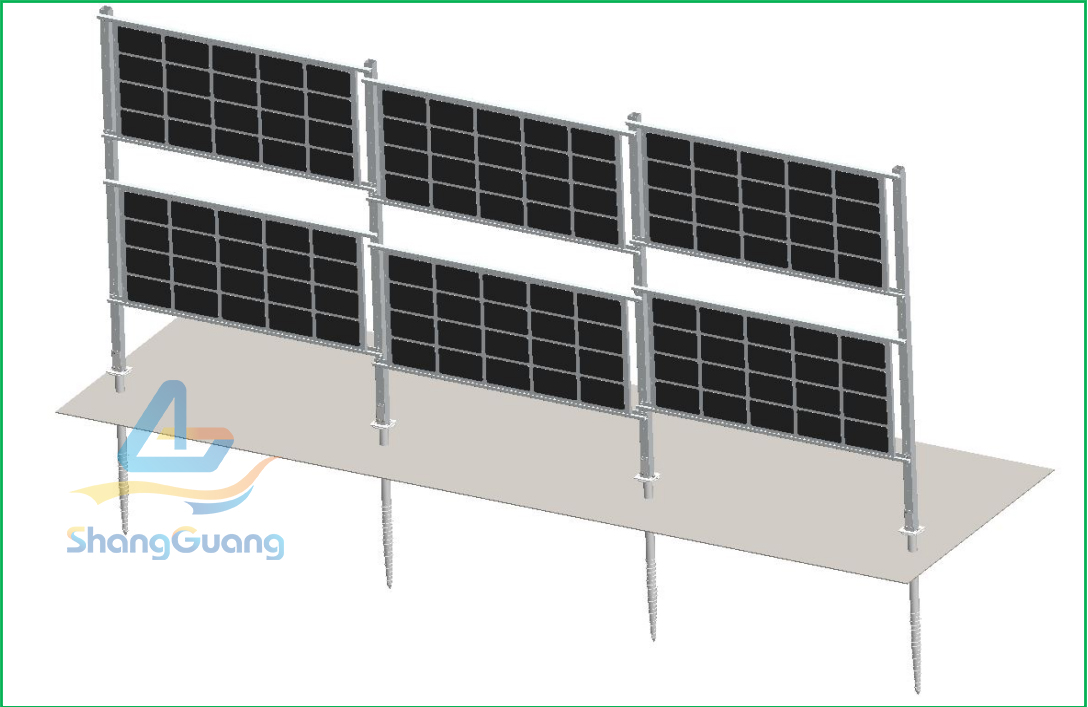

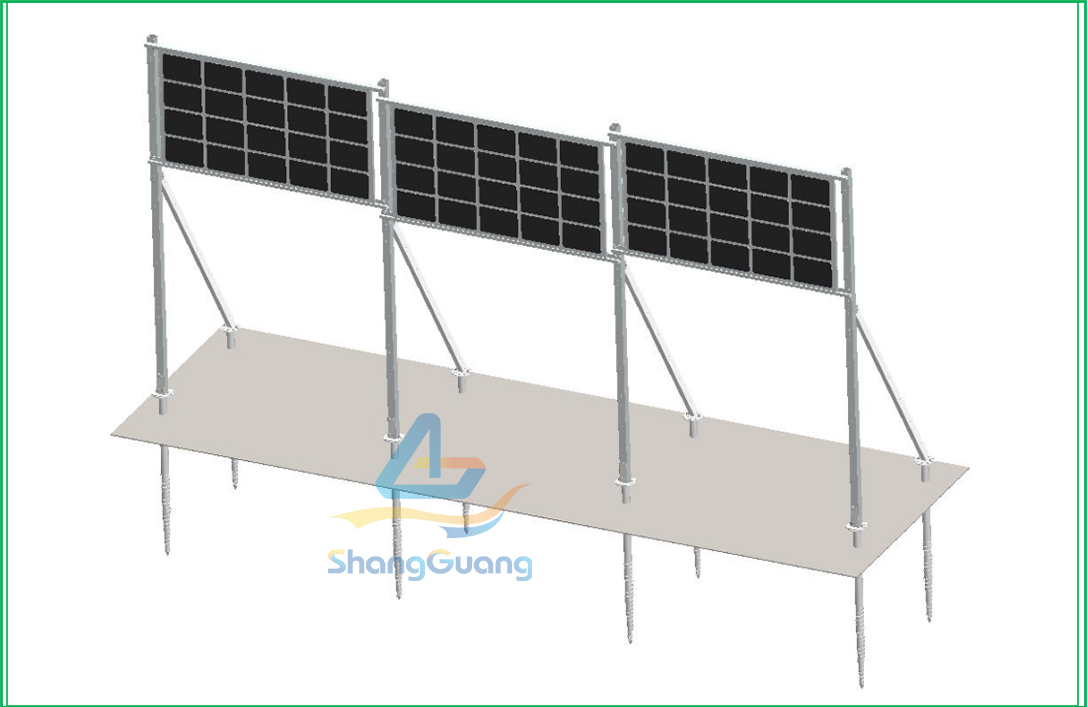

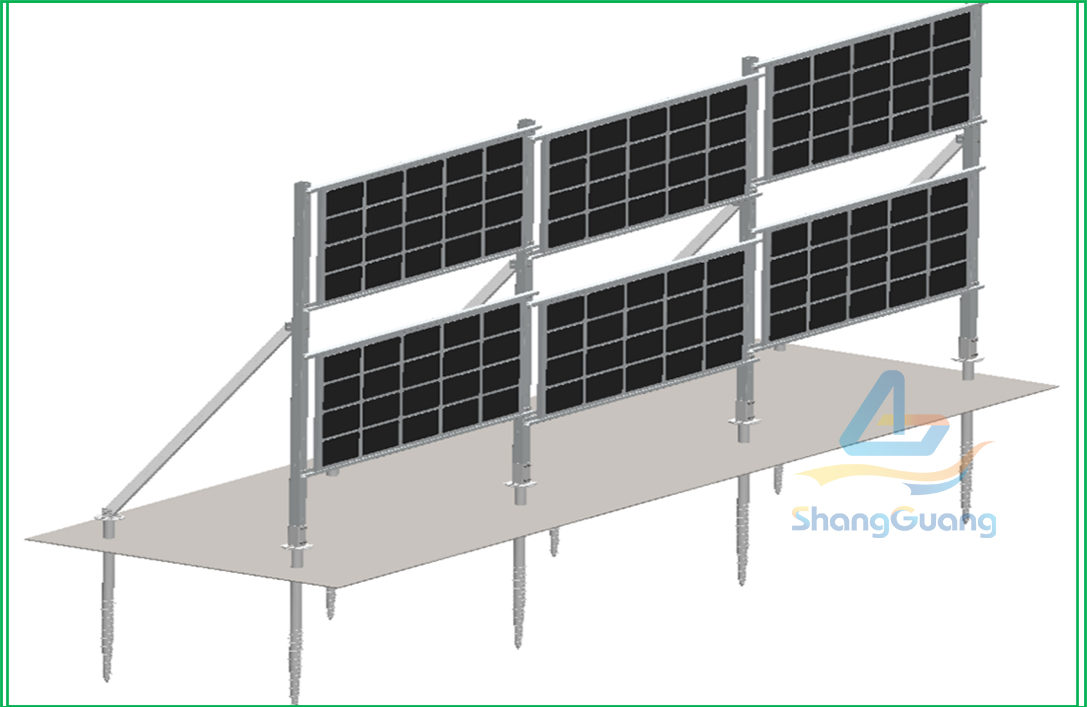

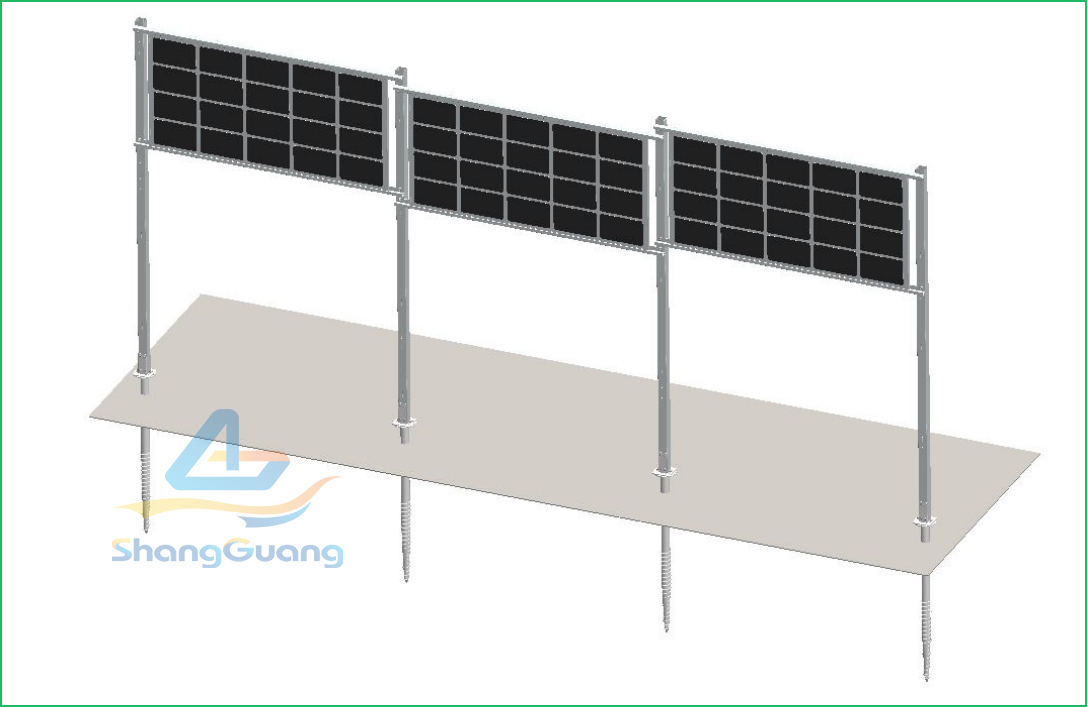

Vertical bracket solar mounting system

What are the features of the vertical bracket we designed?

1. Directly from the front of the installation of the panel, there is no need to slide into the panel or from the top to the bottom of the panel, so the installation is very convenient.

2. All the panels can be uniformly placed on the track, and then fixed after all are placed, no workers need to hold the panel lock screw installation is extremely convenient.

3. The uniquely developed base makes our vertical solar power generation system have a strong horizontal resistance, a good guarantee of strength.

4. If the use of double-sided power generation panels can achieve two power generation peaks a day, the power generation rate is greatly increased.

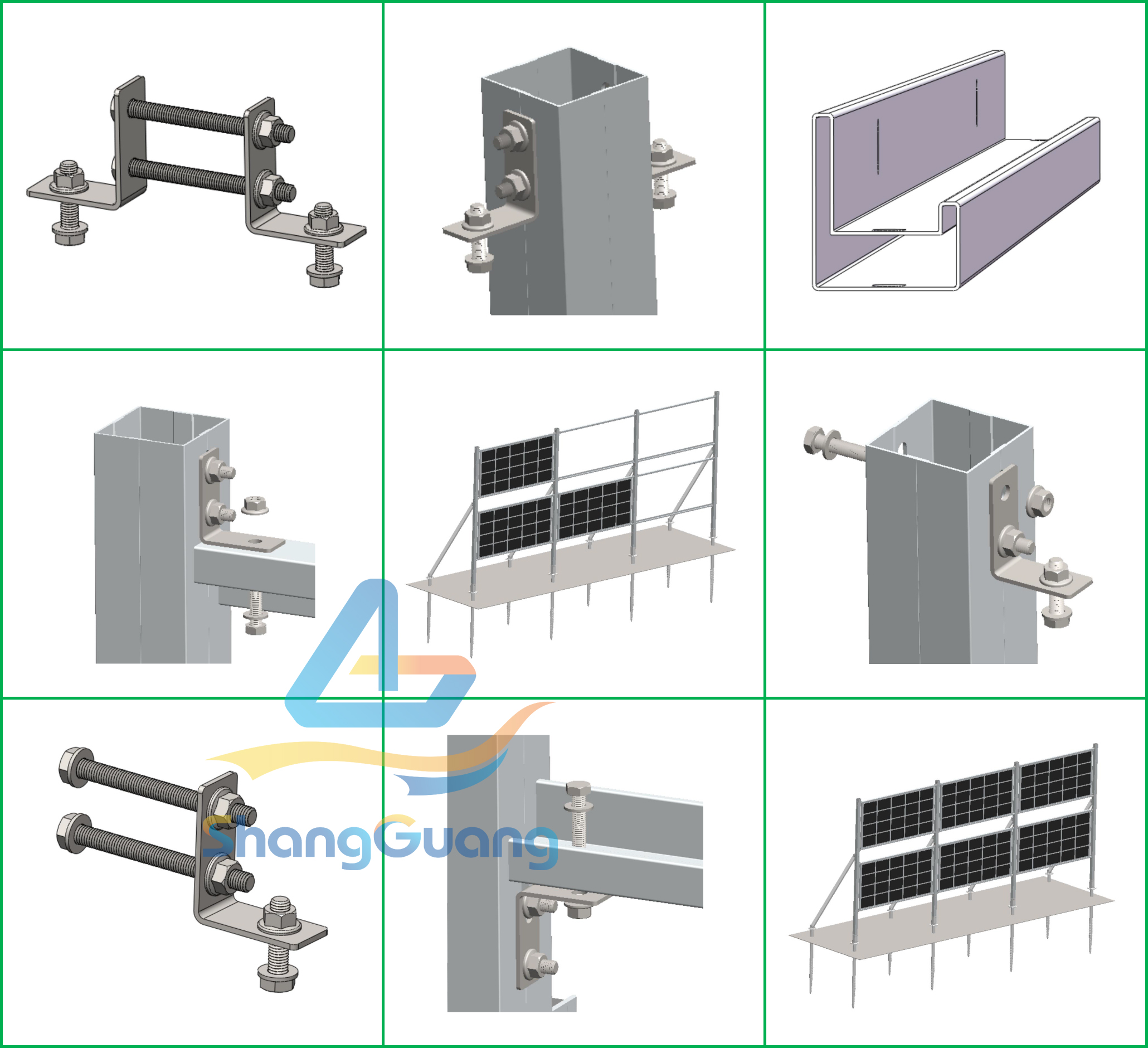

Part drawings

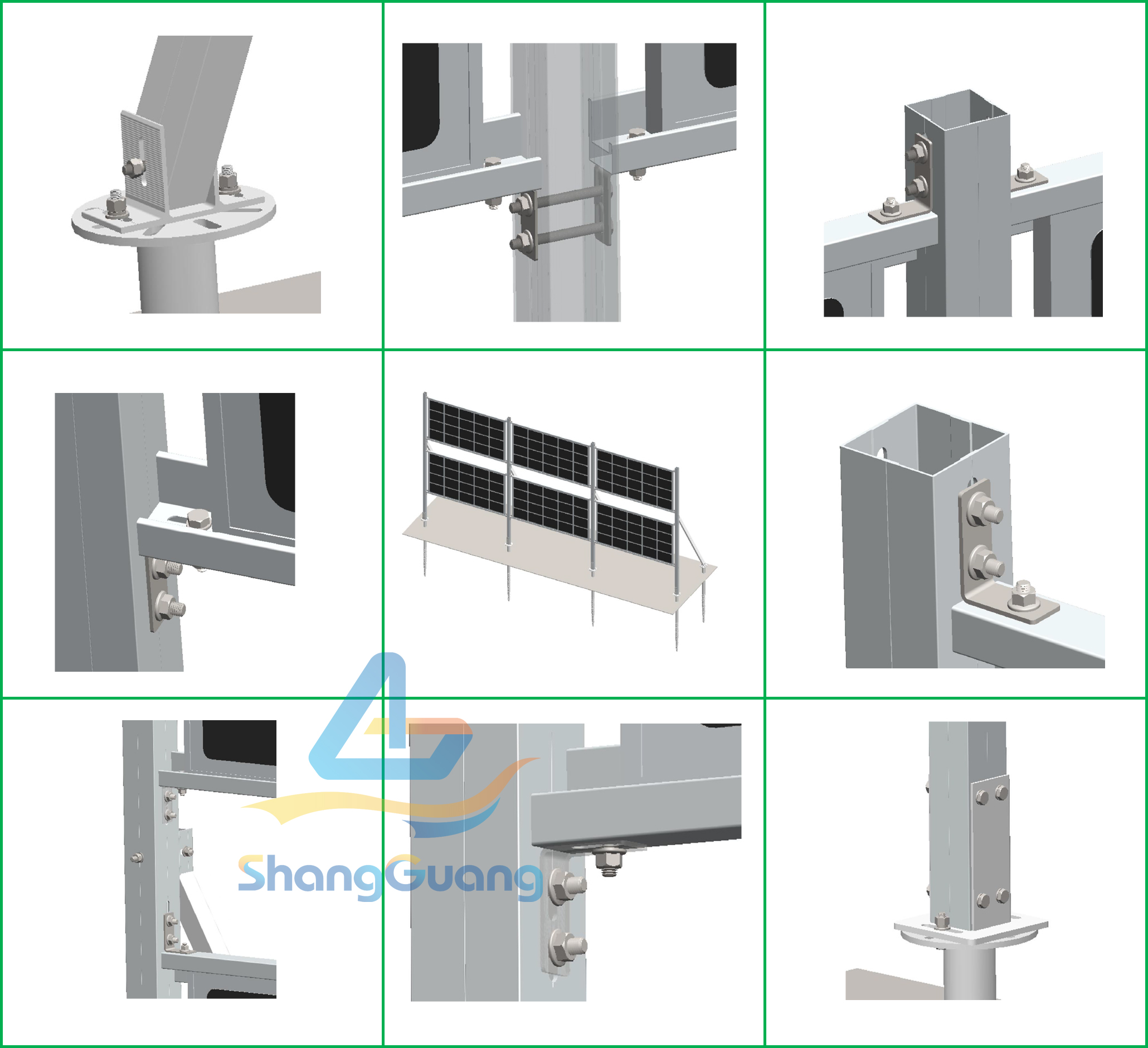

结合部图

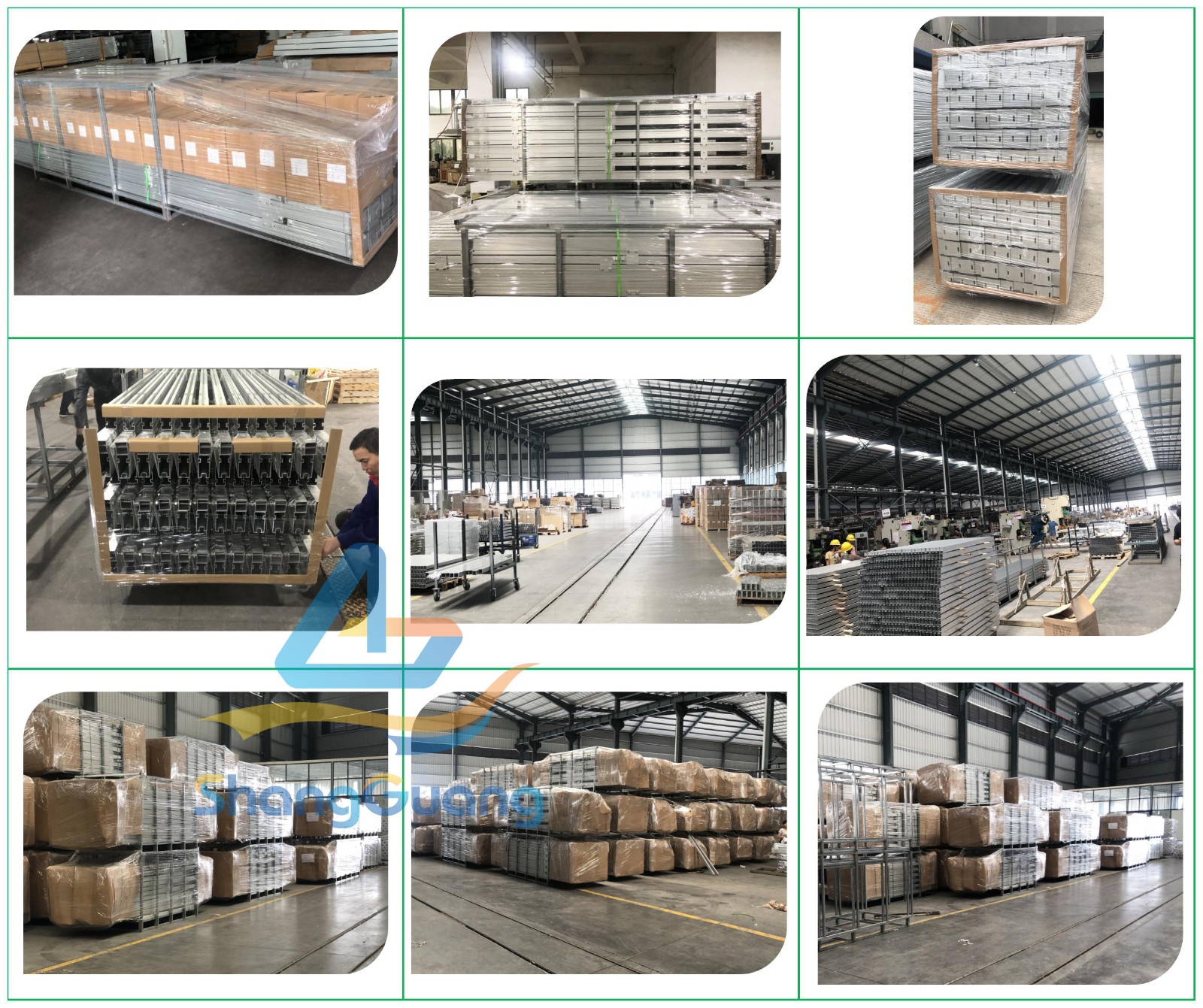

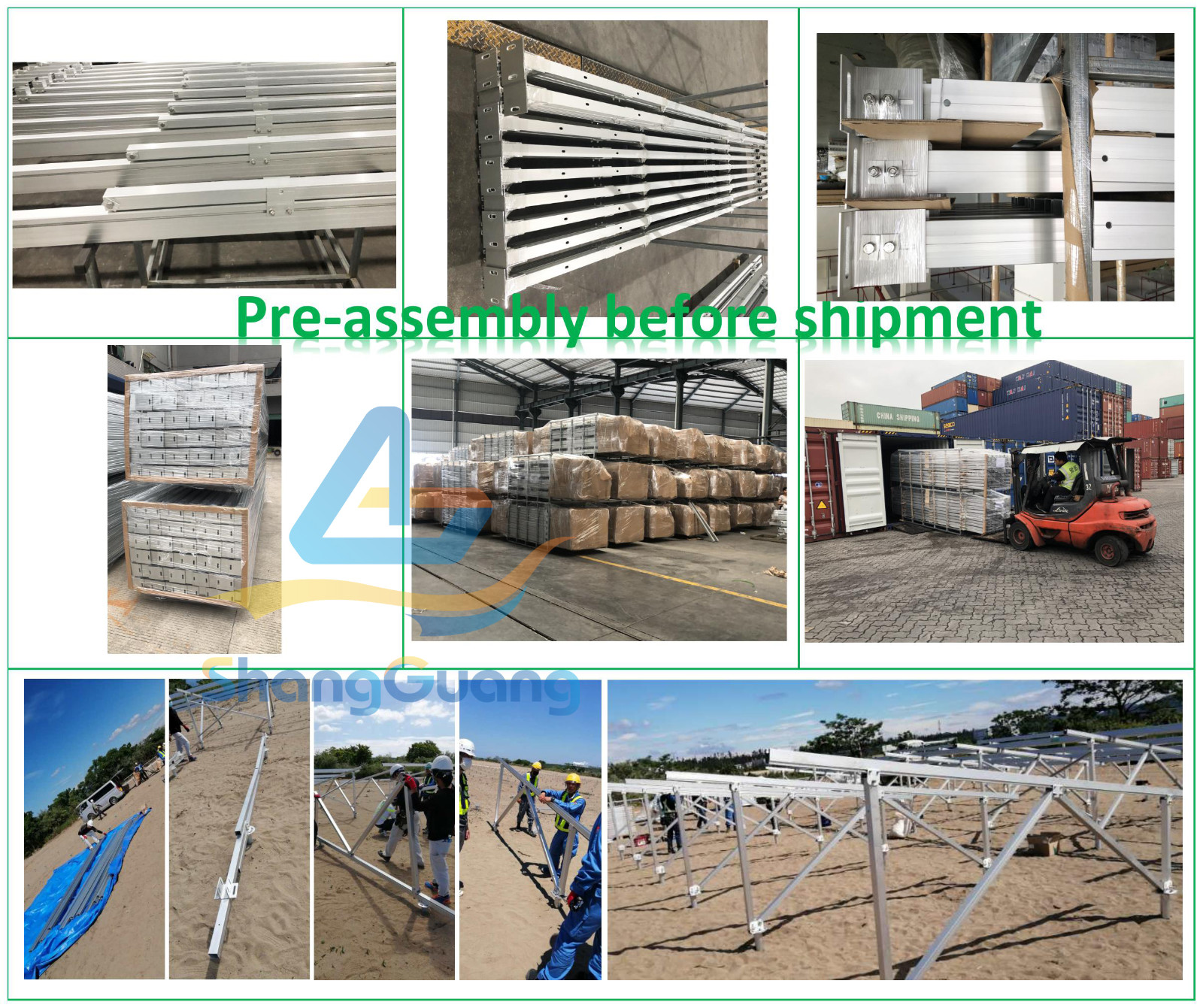

Their own factory packaging packaging container shipment





FAQ

Q1: What is the minimum order quantity for this set of products?
A: Minimum 1 set

Q2: Can you provide samples?
A: Yes. We provide free samples and welcome you to inspect our samples.

Q3: How long is the delivery time?
A: The sample takes 1-2 days, and mass production takes approximately 1-3 weeks, depending on the quantity. If we have inventory, we can ship immediately after payment.

Q4: What price is it?
A: According to different specifications and design conditions, a complete set is approximately $150~450t.

Q5: What kind of solar panel is suitable for use?
A: Almost all solar panel specifications can be applied, and we have matched panels with corresponding power generation rates
